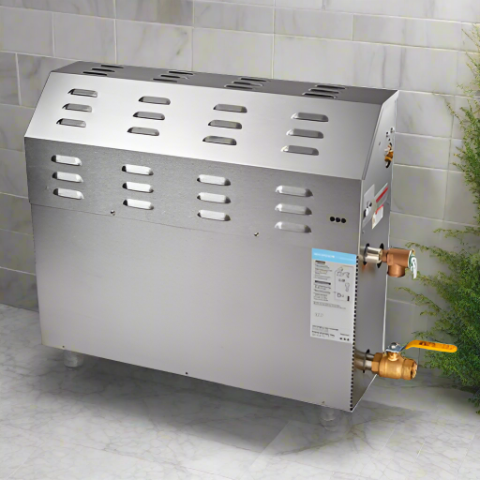

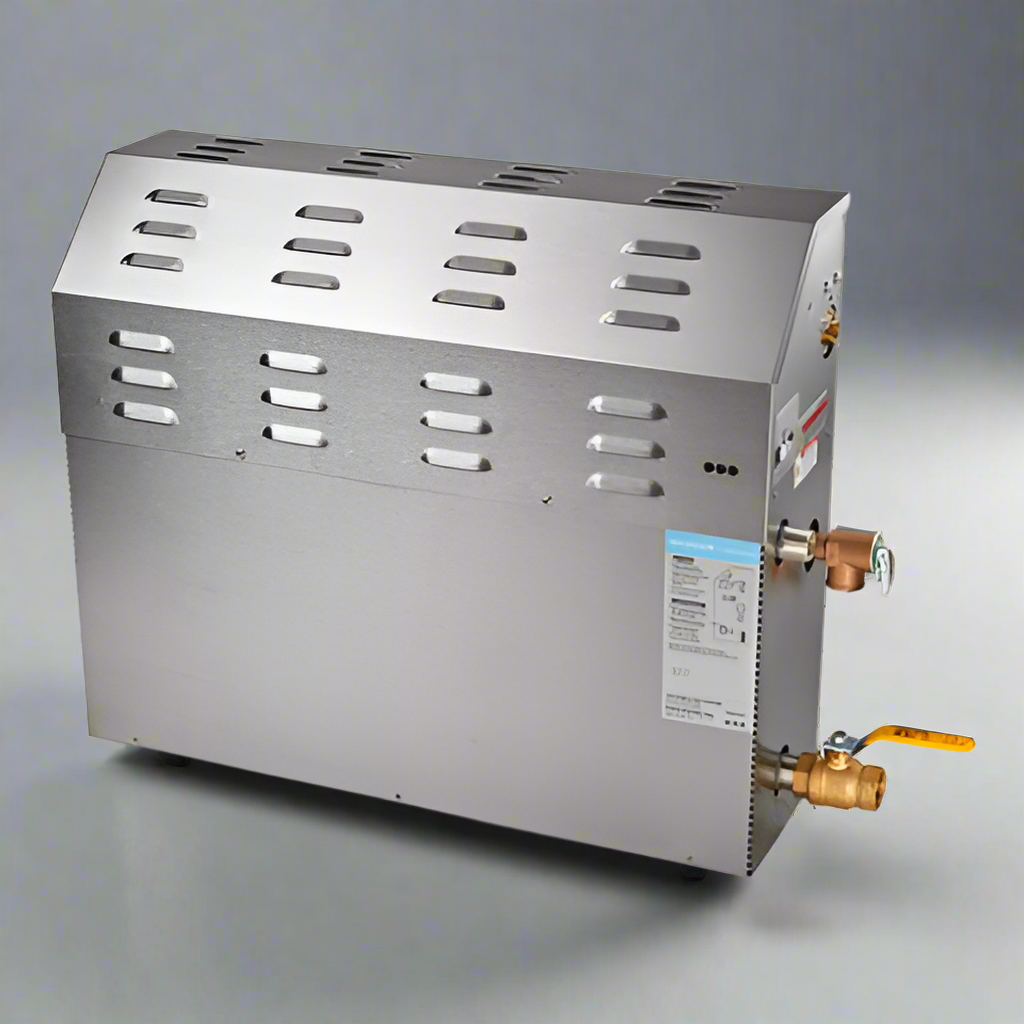

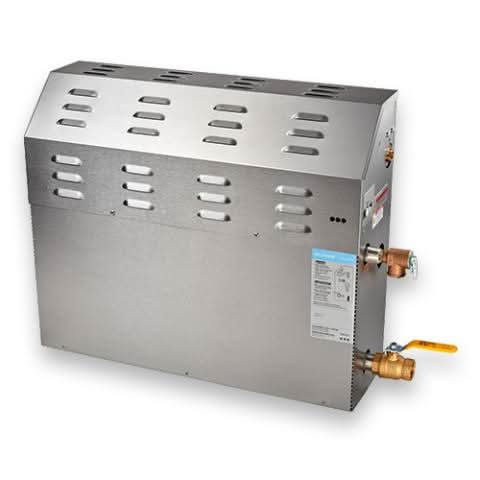

Mr. Steam Generators Mr. Steam MX4 MS MAX Series 20kW Steam Shower Generator
Mr. Steam Generators Mr. Steam MX4 MS MAX Series 20kW Steam Shower Generator
Mr. Steam Generators Mr. Steam MX4 MS MAX Series 20kW Steam Shower Generator
  • 20kW Steam bath generator, 27-5/8" x 20-3/4" x 7-7/8"
  • Installation and operation manual
  • Limited warranty
Model MS MX4E
Minimum Adjusted Cubic Feet 483
Maximum Adjusted Cubic Feet 678
Shipping Weight (Lbs.) 67 lbs
Kilowatt Rating (KW) 20 KW
Electrical Specifications (Refer to Installation Manual)
Water Supply Connection 3/8" NPT
Generator Steam Line Connection 3/4" NPT
Steam Head Connection 1/2" NPT
Drain Connection 1" NPT
Safety Relief Valve Connection 3/4" NPT
Safety Relief Valve PSIG 15 PSIG
Control "Rough In" Cut Out 1"
Generator Control Connection 8-Pin Mini-DIN Connector
Generator Control Cable 30', 8 Conductor, 24 AWG, Shielded Cable
Width 27-5/8"
Depth 7-7/8"
Height 20-3/4"
  • For steam baths sized from 483 to 678 adjusted cubic feet
  • Available in 240V and 208V operation
  • Stainless Steel tank
  • Industrial-grade, serviceable heating element
  • MiniDIN control connections
  • Available Auto Drain automatic draining system
  • Durable electronic components
  • Electronic water-level control system
  • Low-voltage safety control circuits
  • Solid-state circuitry
  • Diagnostic LED Displays
  • Full port drain valve
  • ASME safety valve
  • UL/CUL/NOM/CE Listed

The Mr. Steam MX4 MS MAX Series 20kW Steam Shower Generator is a high-capacity steam shower generator designed for large residential steam baths sized from 483 to 678 adjusted cubic feet. Built with a stainless steel tank, industrial-grade serviceable heating element, electronic water-level control, diagnostic LED displays, and low-voltage safety circuits, it gives homeowners a durable steam solution for larger custom shower environments.

Best Uses for Mr. Steam MX4 MS MAX Series 20kW:

  • Best for homeowners building a large steam shower that requires a generator rated for 483 to 678 adjusted cubic feet.
  • Ideal for custom bathroom projects that need a 20kW steam generator available in 240V or 208V operation.
  • Best for shoppers who want a stainless steel tank, industrial-grade heating element, and durable electronic components for long-term use.
  • Well suited for larger home wellness spaces where consistent steam production and electronic water-level control are important.
  • Great for buyers who want installation-ready safety features such as low-voltage control circuits, an ASME safety valve, and UL/CUL/NOM/CE listings.
  • A strong fit for users who value service-friendly features like MiniDIN control connections, diagnostic LED displays, a full port drain valve, and optional Auto Drain.
