Saunum AIR 5 Sauna Heater Stainless
Air Series, 4.8kW Sauna Heater w/Climate Equalizer, Stainless

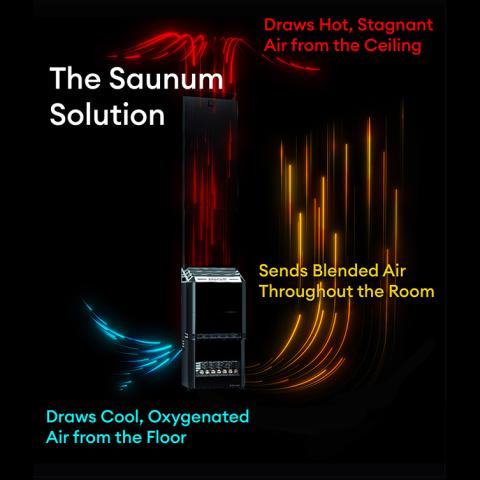

Saunum’s patented air blending system draws heat and steam from near the ceiling, mixes it with cooler, more oxygenated air near the floor, then directs more comfortable, breathable steam throughout the room. This equalizes room temperature by more than 60% for a significantly better sauna experience. Enjoy longer, more satisfying sauna sessions with more intense sweating.

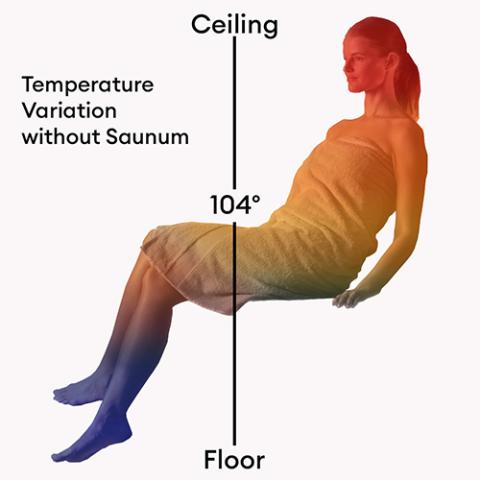

All sauna bathers experience extreme variance in temperature and oxygen from the ceiling to the floor. The temperature at the ceiling can often exceed 200°F, while at the floor it will be under 100°F. The Saunum system ensures the temperature and oxygen level is more consistent throughout.
This revolutionary sauna heater includes a climate-equalizing system that balances temperature and oxygen levels for softer, more breathable air.
Saunum is all about the air!
- The AIR we heat
- The AIR we feel
- The AIR we breathe
Enrich the air with Himalayan salt ions
The ions from the patented Himalayan salt feature are propelled into the sauna, offering benefits like decongestion, inflammation reduction, and anti-microbial properties.
Add dimension with aromatherapy
Relax with the invigorating and awakening scents of Saunum’s aromatherapy option.
Experience 6 styles of sauna bathing
- Russian Banya
- Finnish Sauna
- Estonian Sauna
- Yoga Sauna
- Salt Sauna
- Aroma Sauna
Note: Control and sauna stones (154lbs/5 boxes) sold separately.
SPECIFICATIONS
Category | Specification |
---|---|
Heat Equalizing System | |
Model | Air 5 |
Certification/Global Safety Rating | UL (Underwriters Laboratories) |
Heat/Steam Equalizer Module | 3-Speeds, Whisper-Quiet Operation |
Ceiling Hot Air Intake | 17.72" x 4" (450.09 x 101.6 mm) |

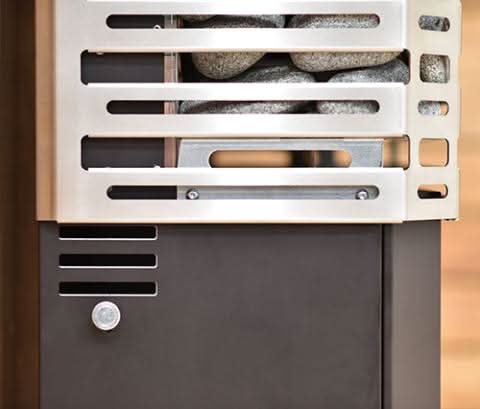

Cool Air Intake Type | Adjustable Valve, Side-Mounted, 12" (304.8 mm) Off Floor |
Cool Air Intake Size | 2" x 2.75" (50.8 x 69.85 mm) |
Blended Air Output | 4.31" x 14.13" (109.47 x 358.90 mm) |
Himalayan Salt & Aroma Tray Type | Removable, Slotted |
Himalayan Salt & Aroma Tray Size | 16.5" x 4.5" (419.1 x 111.76 mm) |
Sauna Heater System | |
Model | Air 5 |
Certification/Global Safety Rating | UL (Underwriters Laboratories) |
Heater Body Style | Stainless Steel |
Heating Elements | Incoloy (Stainless Steel) |
Heating Element Protection | Air Tunnels, Slotted Stainless Steel, Three |
Room Size | 106 - 212 (3-6 Cubic Meters) |
Wattage Rating | 4800 |
Operating Voltage | 240 VAC |
Phase | Single |
Amperage | 20 |
Weight | 106 lbs (48 kg) |
Shipping Weight with Stones | 300 lbs (136 kg) |
Product Depth | 12.41" (315.3 mm) |
Product Width | 18.31" (465 mm) |
Product Height | 71.48 - 94.49" (1815.6-2400.05 mm) (including telescopic air intake) |
Minimum Ceiling Height | 71.48" (1815.6 mm) |
Stone Capacity | 132 - 154 lbs (60-70 kg) |
Stone Size (sold separately) | 2" - 4" (5-10 cm) |
Circuit Breaker | 30 Amp |
Wire Size to Power Unit | (2) #10 + N + G |
Wire Size - Power Unit to Elements | 7-Conductor Cable, #14AWG, 90-Degree C, 5' (152.4 cm) |
Wire Size - Power Unit to Heat Equalizer | 5-Conductor Cable, #18AWG, 90-Degree C, 5' (152.4 cm) |
Room Temperature Sensor | Pre-Mounted with Integrated Cable (150-Degree C), 9.5' (289.56 cm) |
